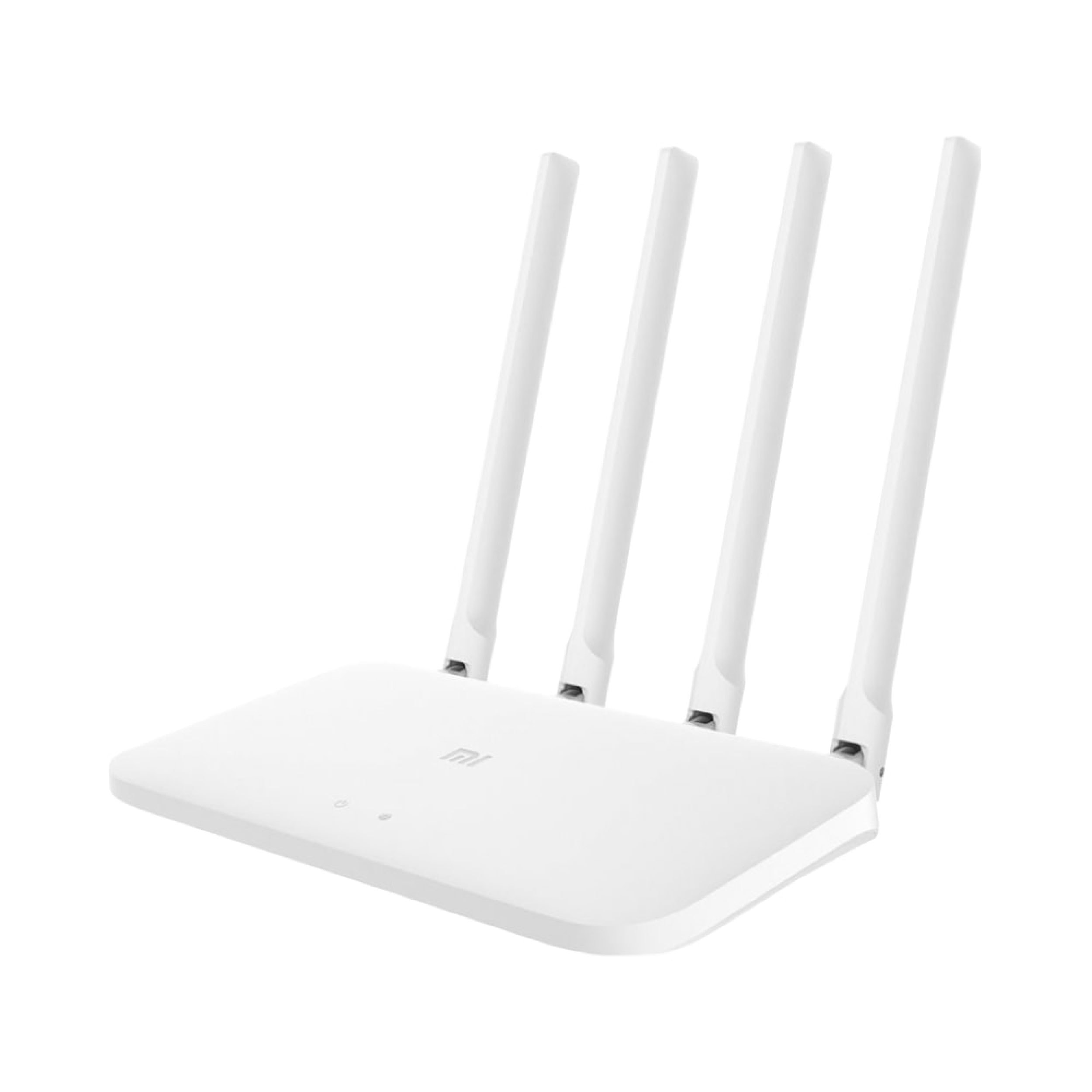

Xiaomi Router AC1200

Hardware configuration

Product colour
White

Processor
Dual-core 880MHz

ROM
16MB

Product memory
128MB DDR3

2.4GHz Wi-Fi
2×2 (Supports IEEE 802.11n protocol, up to a maximum speed of 300Mbps)

5GHz Wi-Fi
2×2 (Supports IEEE 802.11ac protocol, up to a maximum speed of 867Mbps)

Antennas
4 external omni-directional high performance antennas

Cooling
Passive cooling

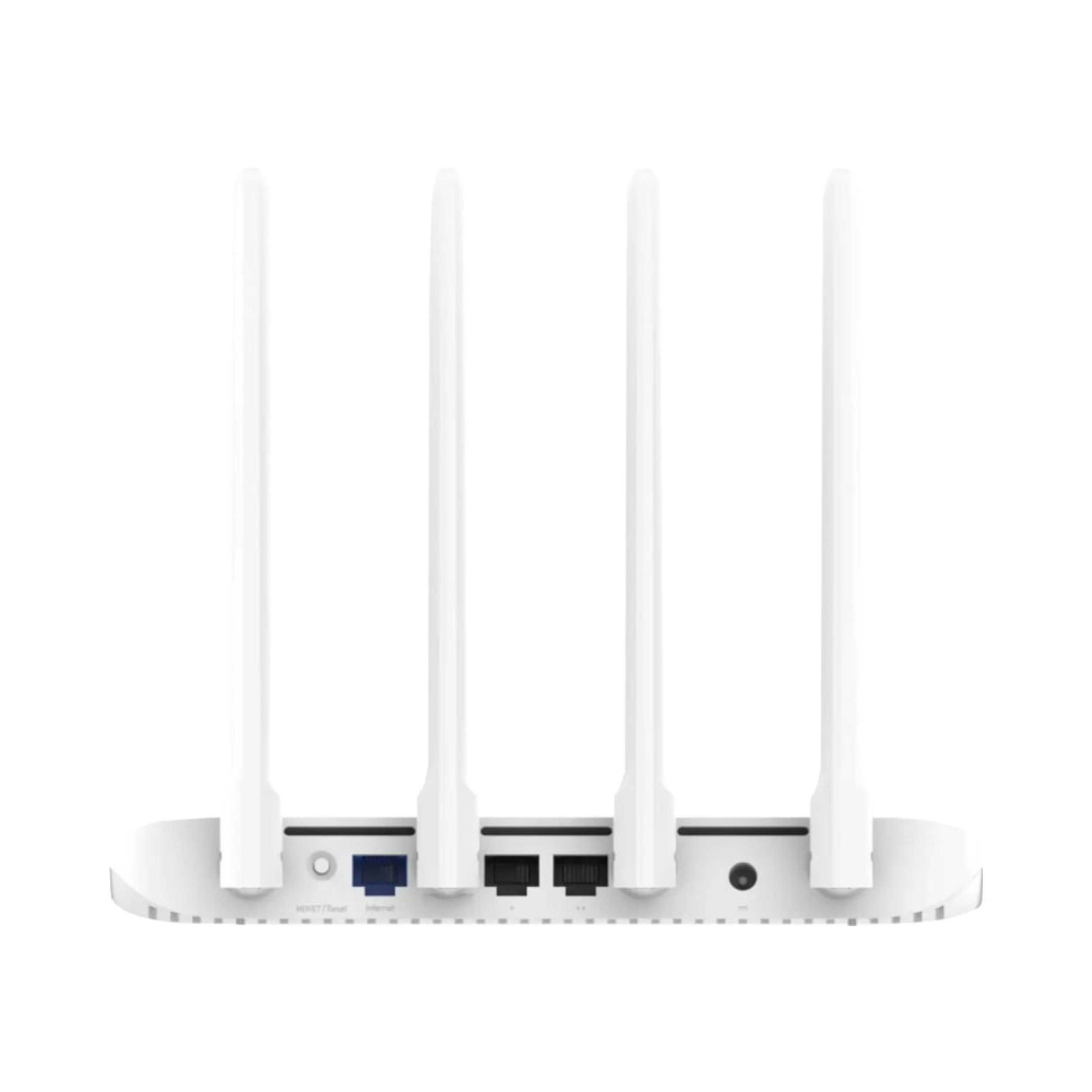

Product ports
2x 10/100/1000M self-adaptive LAN port (Auto MDI/MDIX)

1x 10/100/1000M self-adaptive WAN port (Auto MDI/MDIX)

LED indicator
x2

System reset button
x1

Power supply port
x1

Protocol standards
IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u/3ab

Wireless specifications

Dual-band
2.4GHz and 5GHz

Modulation
11b:DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK(5.5/11Mbps) 11a/g:OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps),
64QAM (48/54Mbps) 11n:MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0-MCS15 11ac:MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set:
MCS0 to MCS9 (supports 2 streams)

Software parameters

Operating system
OpenWRT widely customisable intelligent router operating system MiWiFi ROM

Wireless security
WPA-PSK/WPA-PSK2 encryption, wireless access control (black and white lists), SSID hiding, smart anti-hacking protection

Manage applications
Support Web, Android, iOS

Accessories

User manual
x1

Power supply
(12V/1A) x1

Operating environment

Operating environment temperature
0°C–40°C

Operating humidity
10%–90% RH (non-condensing)

Storage temperature
-40°C–70°C

Storage temperature
5%–90% RH (non-condensing)
