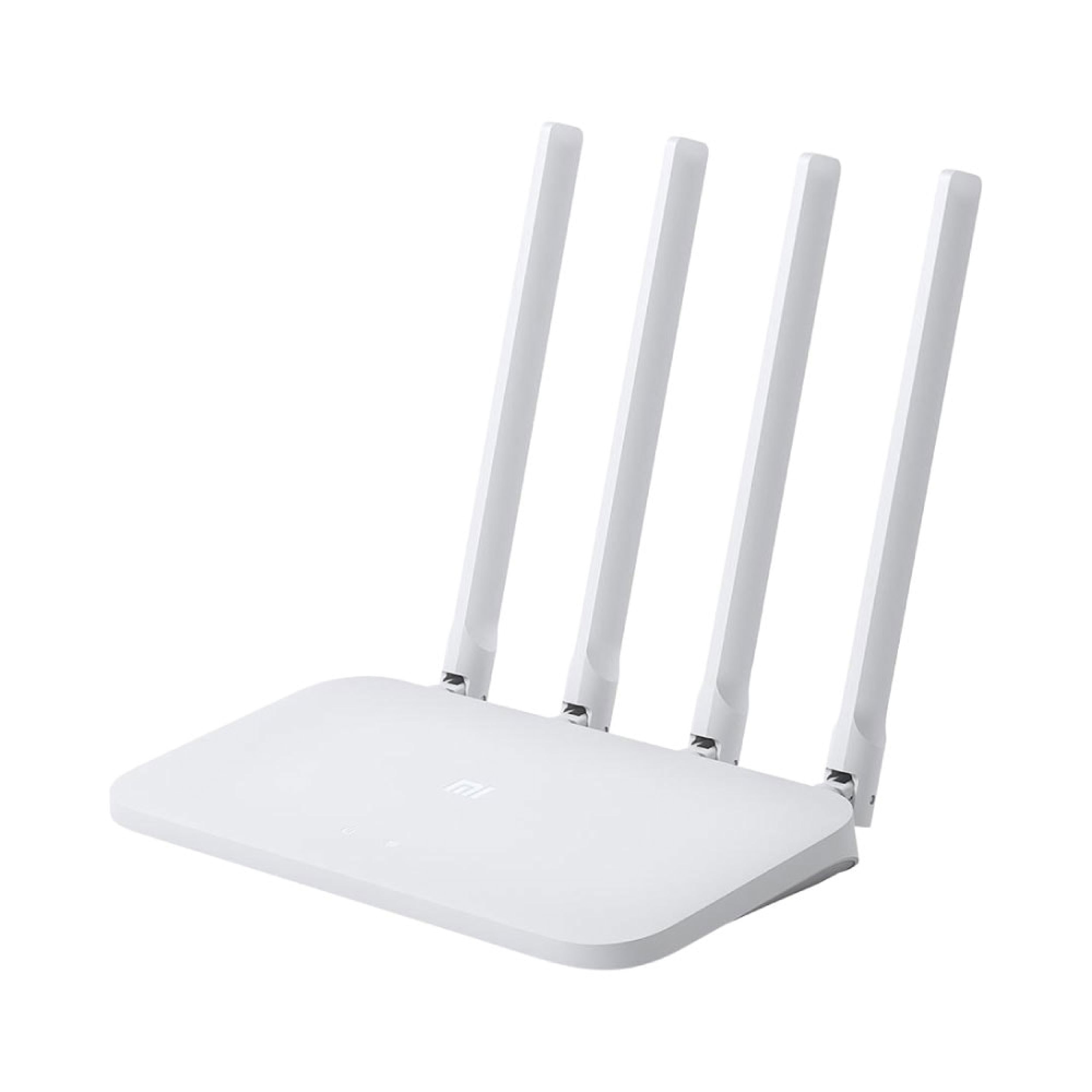

Name: Mi Router 4C (White)
SKU: Q-6001GNC-W
Availability: InStock

Hardware configuration

Processor

MT7628DAInternal memory

64MB DDR2
2.4GHz

Integrated LNA and PA
5GHz

Not supported
Heat dissipation

Natural heat dissipation
Operating humidity:

10%–90% RH (no condensation)
Storage temperature

-40–70°C
Protocol standards

IEEE 802.11b/g/n

IEEE 802.3/3u
ROM

16MB NorFlash
2.4GHz Wi-Fi

2×2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps)
5GHz Wi-Fi

Not supported
Antennas

4x external single band antennas
Operating temperature

–40°C
Storage humidity

5%–90% RH (no condensation)
Certification standards

GB9254-2008 YD/T993-1998 GB4943.1-2011 GB9254-2008 YD/T993-1998 GB4943.1-2011″

Hardware interface

• Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX)

• One system factory settings reset button

• One orange/blue/purple system status light; one blue external network interface status light

• One 10/100M self-adaptive WAN port (Auto MDI/MDIX)

• One power input interface

Wireless specifications

single band

2.4GHz

Modulation
11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15

Reception sensitivity
11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm

Software specifications

Operating system

Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software
Wireless security

WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding
Management application

Supports web, iOS, and Android
