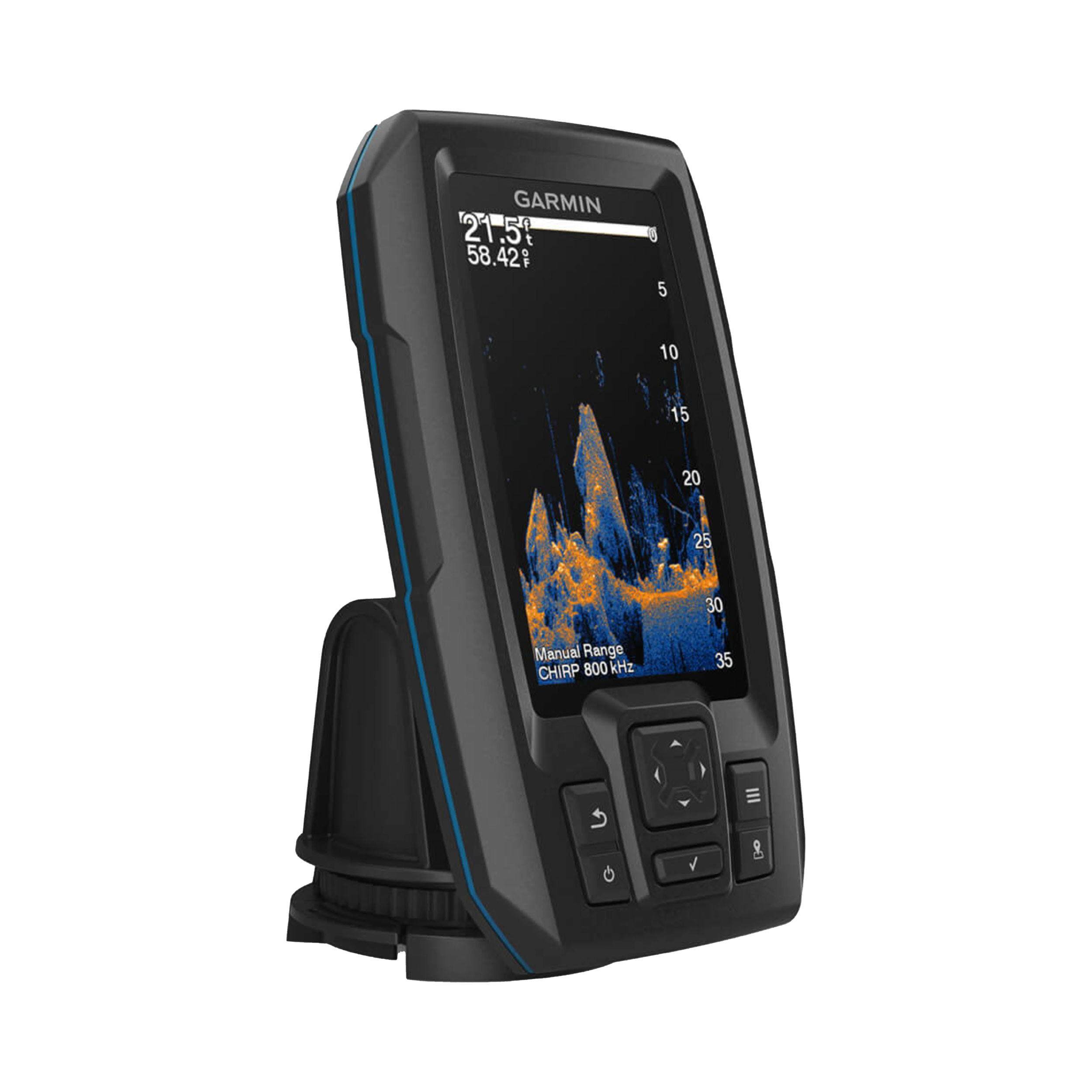

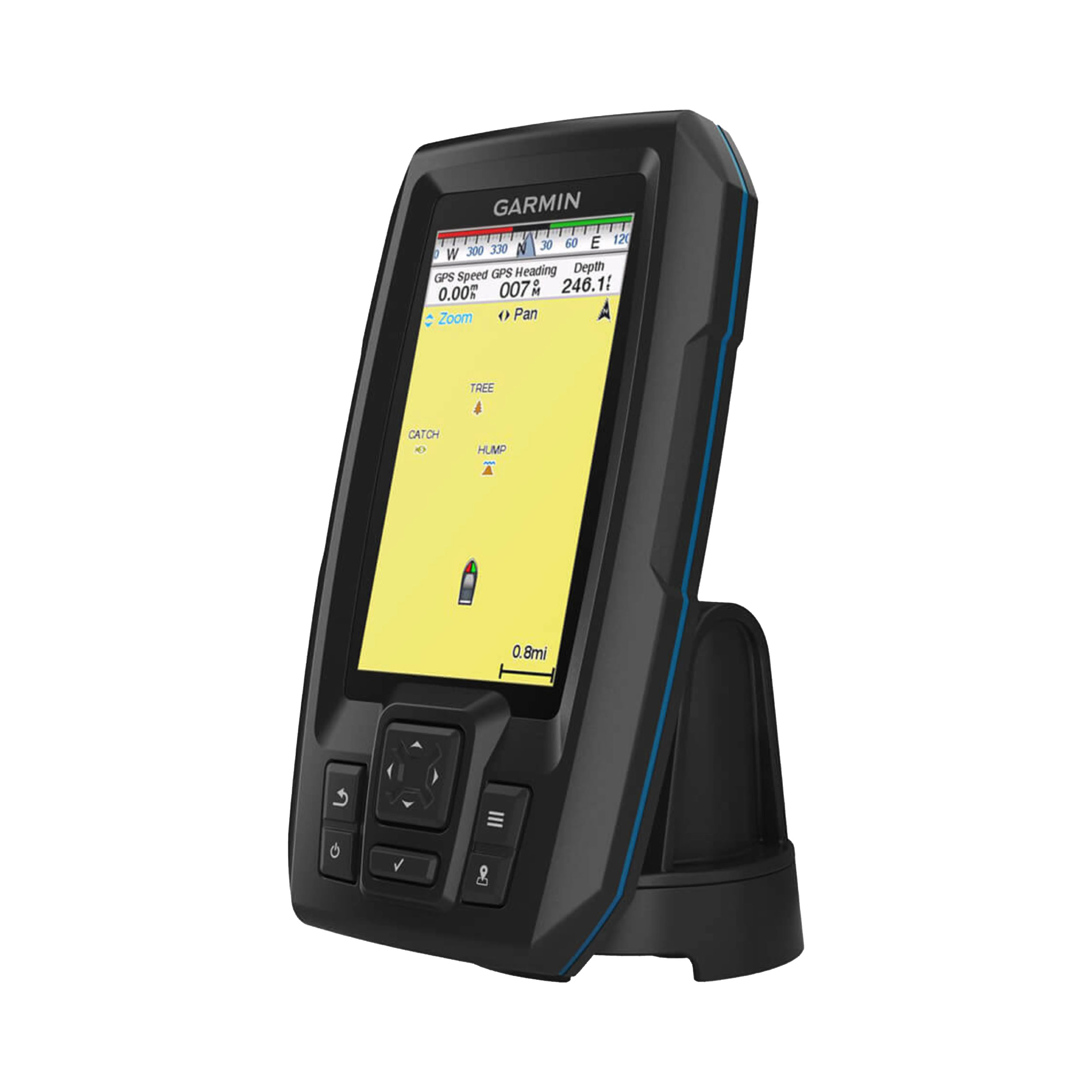

Garmin STRIKER Vivid 4cv

Dimension
3.9” x 6.9” x 1.8” (9.8 x 17.4 x 4.5 cm)

Weight
0.7 lbs (0.3 kg)

Water rating
IPX7

Display Type
QSVGA

Display Size
2.1″ x 3.7″ (5.4 x 9.5 cm); 4.3″ diag, (10.9 cm)

Display resolution
272 X 480 pixels

Mounting Options
flush, tilt/swivel

Input
Keyed

Waypoints/favorites/locations
5000

Track points
50,000

Tracks
50

Navigation Routes
100

GPS
Has built-in receiver
Supports WAAS

Garmin Quickdraw Contours

Power Input
12 to 20 Vdc

Typical current draw
0.40 A

Max current draw
1.5 A

Power Consumption
4.8

Displays sonar
Yes

Traditional sonar (dual frequency/beam)
Built-in

ClearVü
Yes

Frequency Traditional
50/77/200 kHz
CHIRP (mid and high)
ClearVü 260/455/800 kHz

Transmit power
300 W (RMS)

Bottom Lock (shows return from the bottom up)
Yes

Water Temperature Log
Yes

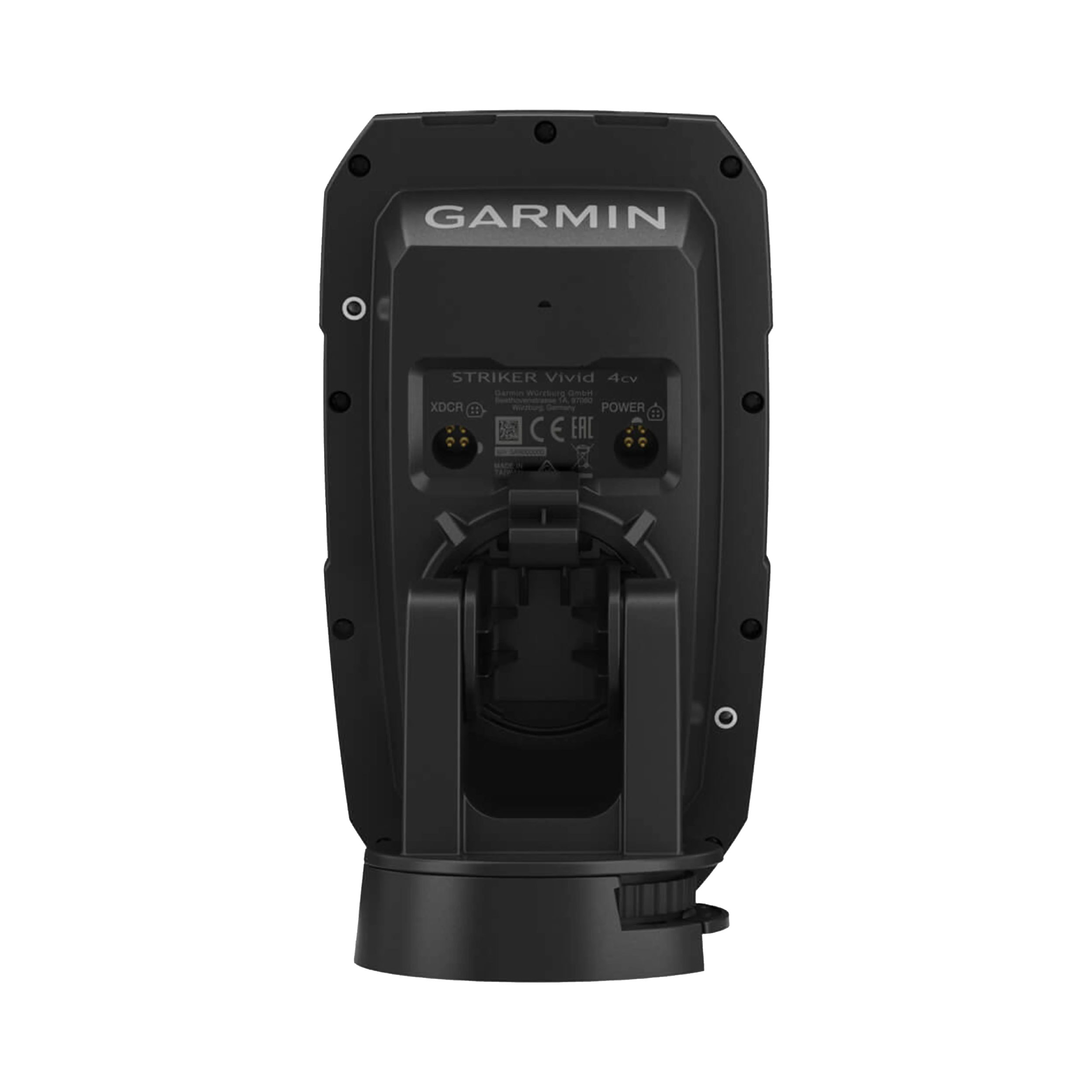

4-pin transducer ports
1

Split-screen zoom
Fish Symbol ID (helps identify fish targets)
AutoGain Technology (minimises clutter, maximises targets)
Adjustable depth line (measures depth of underwater objects)
A-scope (real time display of fish passing through transducer beam)
Water temperature sensor included
Depth range shading

One 4-pin transducer port
Quickdraw Contours
Integrated GPS
Mark Waypoints
Course over Ground (COG)
Current draw @ 12V: 0.40A
